Manufactured sand production is changing.
For many aggregate producers, the question is no longer simply how to produce more fine aggregate. Project operators are also paying closer attention to particle shape, grading control, installation time, site mobility and the ability to adapt production as working areas change.
This is where tracked mobile sand making equipment is finding a more practical role.
Unlike a conventional fixed sand-making line, a tracked mobile system integrates key production functions onto a mobile platform. For quarry, mining and infrastructure projects where production locations may change, this can reduce dependence on permanent foundations and shorten the time required to move production closer to the material source.
Sand Making Is More Than Producing Fine Material
In a typical aggregate production process, sand making comes after primary and secondary crushing.
At this stage, the objective is not simply to make the material smaller. A properly configured VSI sand-making stage can also help:
- improve aggregate particle shape;
- produce manufactured sand;
- control final product grading;
- reduce flaky particles in suitable applications;
- produce different aggregate specifications.
This becomes increasingly important when the finished material is intended for concrete, road construction or other infrastructure applications.
For hard and abrasive materials such as granite and basalt, primary and secondary crushing are normally completed first. VSI crushing can then be used for fine crushing, shaping and manufactured sand production.
Why Mobility Matters
A fixed crushing and sand-making line still makes sense for a quarry operating continuously at one location.
But not every project works that way.
Some mining areas develop in stages. Infrastructure projects may require equipment to move as construction progresses. Raw material sources may also shift over time.
In these situations, repeatedly building foundations, dismantling equipment and reconstructing a production line can add time and cost.
A tracked mobile sand making plant provides another option.
Because the equipment is mounted on a tracked chassis, it can move between working areas with less dismantling and site preparation. This can be useful for:
- quarry and mining operations;
- manufactured sand production;
- infrastructure construction;
- aggregate shaping;
- construction waste recycling;
- projects with multiple or changing working areas.
The real value of mobility is therefore not simply that the machine can move. It is the ability to reorganize production more quickly when site conditions change.

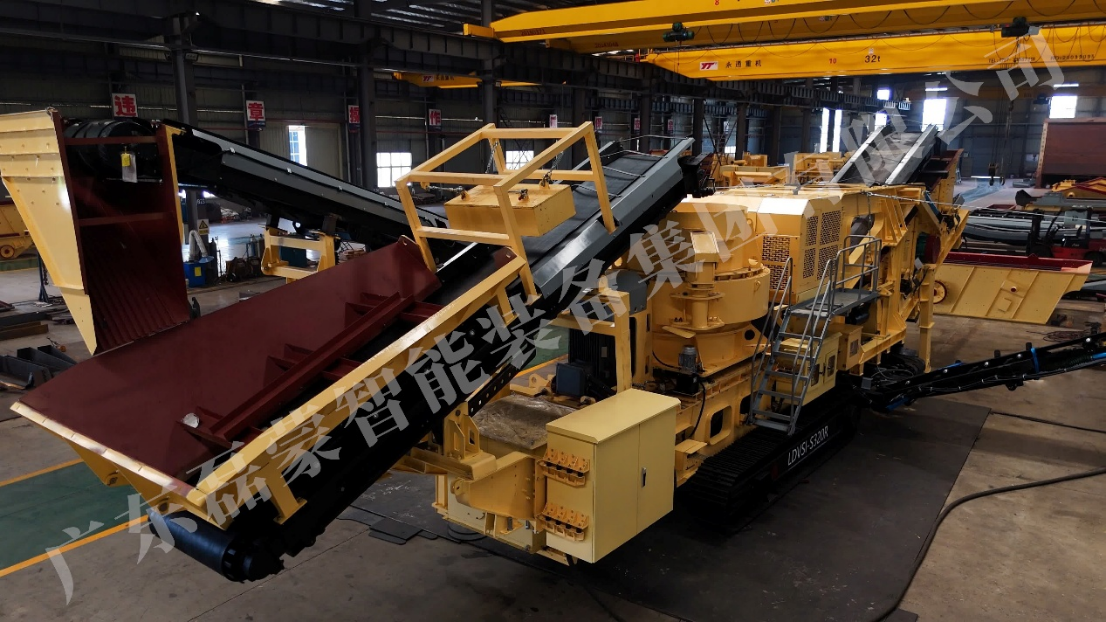

A Practical Example: VSI320 Tracked Mobile Sand Making Machine
A recent Leimeng Group tracked mobile sand making unit provides a useful example of how these systems can be configured.
The machine, prepared for a Central Asia project, combines:
- VSI320 impact sand maker;
- tracked mobile chassis;
- return screening module;
- intelligent PLC control system;
- integrated conveying system.
Its designed production capacity is 100–150 t/h.
The VSI320 serves as the core fine-crushing and shaping unit, while the return screening module allows oversized material to circulate back for further processing.
This closed-loop arrangement helps improve control over the finished product.
Depending on the screening configuration, the machine can produce three finished product sizes at the same time, giving aggregate producers more flexibility when supplying different material specifications.
Closed-Loop Screening Matters More Than It May Seem
One of the challenges in manufactured sand production is maintaining consistent finished product specifications.
Simply adding a VSI crusher does not automatically solve this problem.
Crushing and screening need to work together.
When oversized material is returned for further processing, the production system has another opportunity to control particle size instead of allowing off-spec material to enter the finished product pile.
For projects producing several aggregate sizes, integrated return screening can therefore be just as important as the crushing unit itself.
Modular Design Can Reduce Project Setup Time
Mobility is only useful when the equipment can also be transported and commissioned efficiently.
A modular layout simplifies the relationship between the crusher, conveyors, screening system and supporting components.
For overseas projects in particular, this can help reduce the amount of work required after the equipment arrives on site.
Compared with building a conventional fixed sand-making line from the ground up, mobile equipment can reduce foundation requirements and simplify installation for suitable applications.
This makes it particularly relevant for temporary sites, staged mining areas and projects where production locations are expected to change.
Intelligent Control Is Becoming Part of Mobile Crushing
Another change in modern mobile equipment is the growing use of integrated control systems.
The Leimeng unit uses a PLC intelligent control system supporting functions such as:
- one-button start and stop;
- real-time operating status monitoring;
- fault warnings;
- operating parameter adjustment.
For operators, this improves visibility into machine status and reduces the amount of manual intervention required during normal operation.
This is especially useful in mobile production environments, where working conditions may change more frequently than in a permanent fixed plant.
Mobile or Fixed: Which One Makes More Sense?
A mobile sand making machine is not automatically better than a fixed plant.
The right choice depends on the project.
A fixed sand-making line is generally more suitable when:
- the quarry will operate at the same location for many years;
- production volume is very high;
- permanent infrastructure is already available;
- frequent relocation is unnecessary.
A tracked mobile sand-making system becomes more attractive when:
- working areas change;
- rapid deployment matters;
- foundation work needs to be reduced;
- production needs to stay close to the raw material;
- equipment may serve multiple locations.
Equipment selection should therefore start with the production scenario rather than the machine itself.
What Should Buyers Check Before Selecting a Mobile VSI Plant?
Before choosing a mobile sand-making machine, project owners should first define:
Raw material
Granite, basalt, limestone, river pebble and recycled aggregate behave differently during crushing.
Hardness and abrasiveness
These directly affect wear parts and operating cost.
Feed size
A VSI normally requires properly crushed feed from previous crushing stages.
Required capacity
The equipment must match the actual production target.
Finished product specifications
Manufactured sand and shaped aggregate may require different screening arrangements.
Particle shape requirements
The required aggregate quality influences process configuration.
Mobility requirements
The more frequently a project moves, the more important mobile design becomes.
Power conditions
Available site power should be considered when configuring the machine.
The Bigger Shift: From Individual Machines to Flexible Production Systems
The development of tracked mobile sand-making equipment reflects a wider change in aggregate production.
Project owners are increasingly looking beyond individual crusher specifications.
They want production systems that can combine crushing, shaping, screening, conveying and control while adapting to real site conditions.
For some projects, a fixed line remains the right answer.
For others, bringing the production system closer to the material—and being able to move it again when necessary—can create greater operational flexibility.
The key is not choosing mobile equipment because it is mobile.
It is choosing a production configuration that matches the material, capacity, finished product and operating environment.
